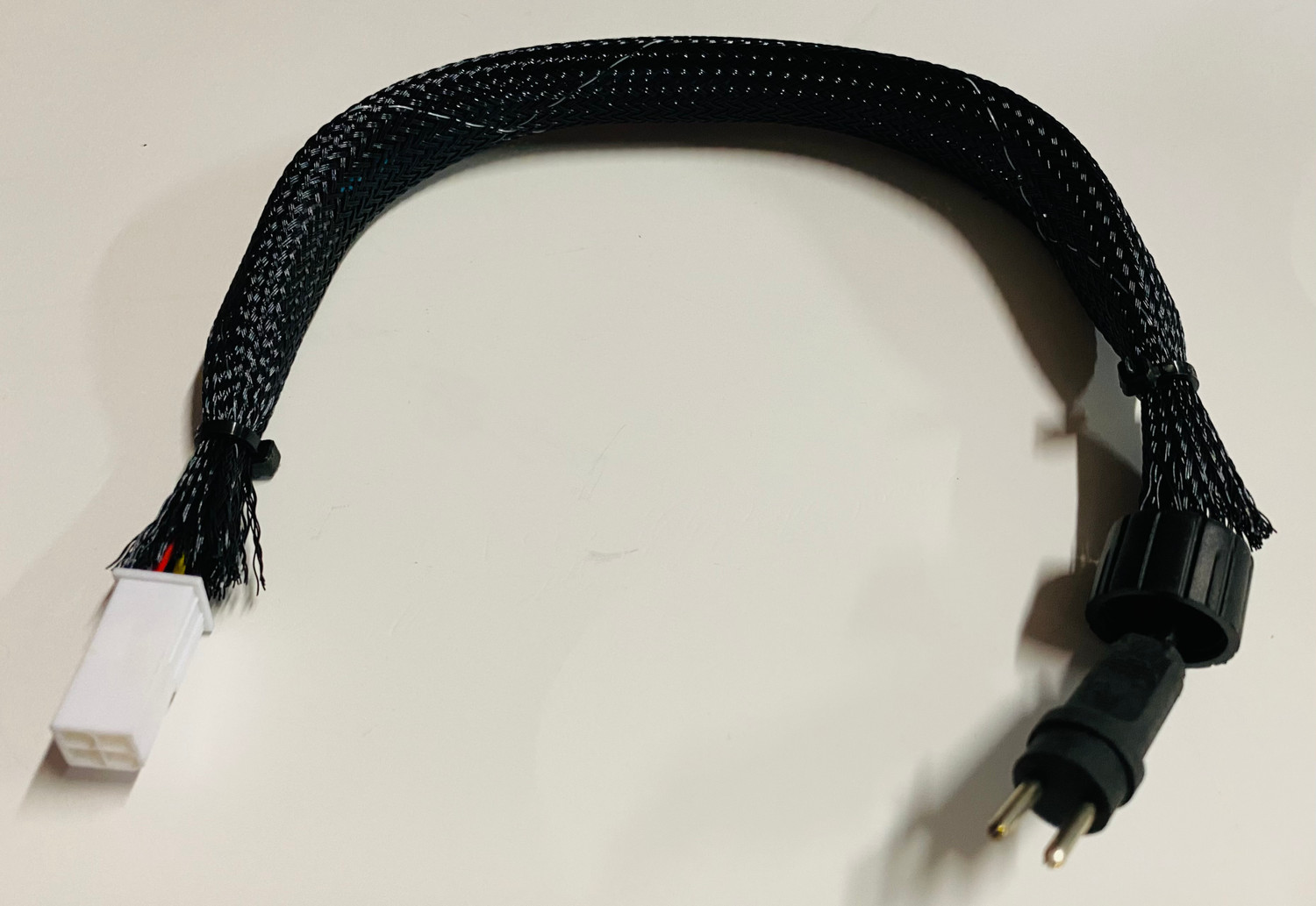

AOG "L" Series AC/DC Converter Harness - 24-B-56
AOG “L” Series AC/DC Converter Harness — OEM Power Conversion Harness
Sold Individually. Genuine AOG (American Outdoor Grill) replacement AC/DC converter harness used on L Series grills. This harness serves as the connection between the grill’s internal wiring and the external power supply.
How This Harness Is Connected:
This harness plugs into the grill-side wiring via the
Wiring Harness Extension (24182-53),
then connects on the opposite end to the grill’s AC/DC power supply.
It delivers converted DC power required for grill lighting
and electronic components.
Quick Fit Check:
Brand: AOG (American Outdoor Grill)
Series: L Series
Part Number: 24-B-56
OEM Part: Yes
Tech Tip: Check the Power Supply Fuse First. Before replacing the 24-B-56 converter harness, inspect the power supply fuse (24-B-57), which is mounted directly on the transformer. If grill lights or electronic ignition are not functioning, a blown fuse can interrupt power.
Remove and inspect the fuse for a broken internal filament, darkened glass, or signs of heat damage. The 24-B-56 converter harness plugs into the port immediately adjacent to this fuse on the power supply. If a new harness is installed and power is still not restored, the fuse is typically the next component to verify.
Ensuring both the fuse and harness are in proper working condition is the most effective way to restore your AOG “L” Series lighting and electronic systems.
When should this harness be replaced?
Replace this converter harness if grill lights or electronics fail to power on or if the original harness shows signs of heat damage or corrosion at the connectors.
