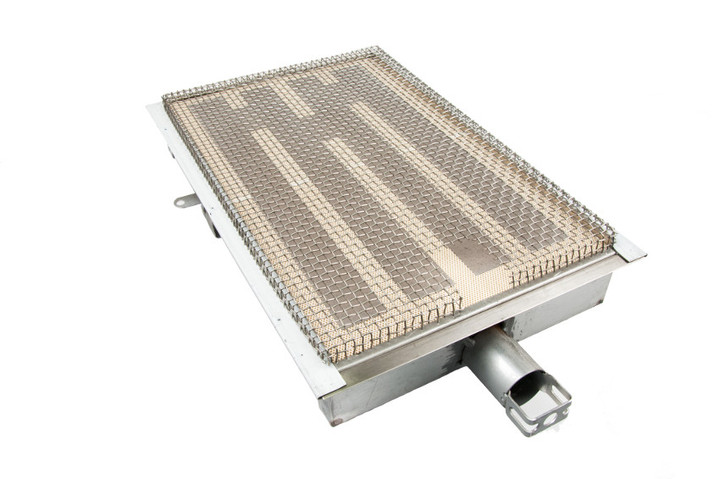

This is an OEM Prosear1 burner for the PS models. These burners are intense infrared heat that also has variable heat settings allowing you to sear anything from filets to fish.
Lynx Grill Replacement Pro Sear Infra Red Burner for 30, 42, 54-in
Series : J, K, L, M
Replacement infrared gas grill burner for 2007, 2008, 2009, 2010, 2011 barbecue grill models.
Fits Lynx Models: L30PSR-1, L30PSFR-1, L42PSR-1, L42PSFR-1, L54PSR-1
This is the deeper infrared prosear burner.
Alternate part and Old part# 32183, 33000
Total Length (including venturi tube) is 18.75 inches and 11 inches wide.
When the burner is turned upside down, the width of the housing is slightly smaller (9 7/8 x 15 3/4)
This item is an original manufactured part.
Tip : Here is a video and instructions on cleaning an infrared prosear burner
To replace your Lynx Prosear Burner :
1. Shut off gas supply
2. Remove Cooking Grate
3. Slide old burner back and lift up. (You may need to remove the igniter electrode)
4. Install new burner by sliding over the valve
5. Reinstall cooking grate
To ensure you choose the correct replacement part for your Lynx grill you will need to know the series of your bbq grill. If you are unsure please email us and or call us we will be able to verify you will be ordering the correct part.
Posted by Derek Weaver on 18th Mar 2014
The part was the correct dimension, however there are tabs on the base that are different than mine. I bent the tabs flat but the burner will not lay exactly flat like the original. Verified with serial number when ordered, not sure why the tabs are in the wrong area.
