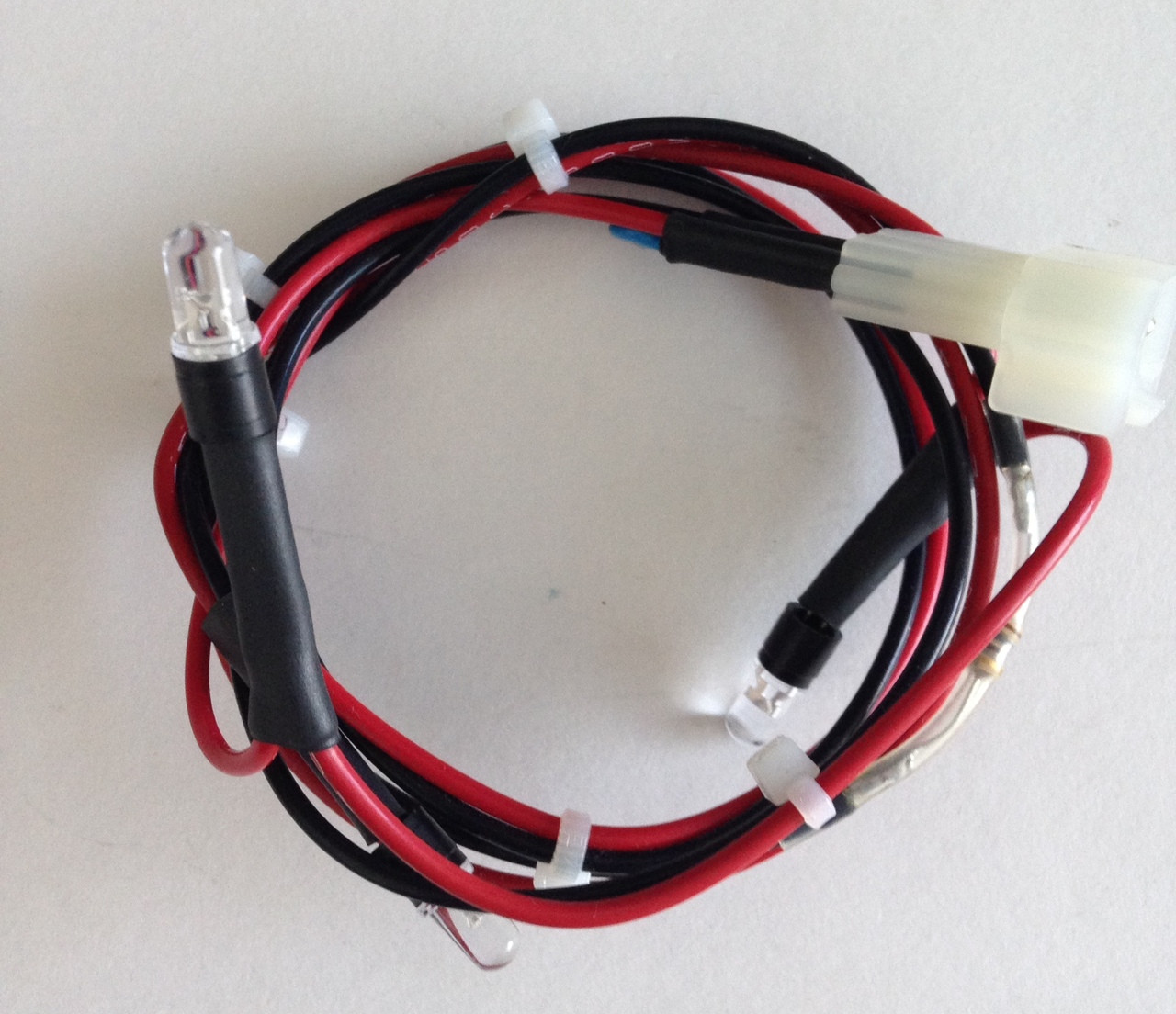

80435 Lynx L27/L30-IR, Sedona LED Wire Harness Assembly

SKU: 59680435

Lowest Price Guarantee

If your knobs do not light up, you may need the LED Wire harness assembly. This kit allows the blue lights to turn on behind the knobs.

Series : L, M, N & P, Q

Fits Lynx : L27-2-2010, L27F-2-2010, L27FR-2-2010, L27PSFR-2-2010, L27PSR-2-2010, L27R-2-2010, L30PSFR-1-2010, L30PSR-1-2010, L30R-1-2010

Fits Sedona : L400 with IR


Led Light Assembly (2011 to present) - Remove knobs first. There are 2 tabs located at the bottom of the panel. Pull both tabs toward the center at the same time. Pull out drip pan about ¼ of the way. Lay down panel carefully on drip pan; be careful due to wires attached. Follow wiring were attached and remove one led at a time starting from your right and install new one at the same time.



Alternate part: 80435

Please verify your serial number or manufacturers part number when ordering repair parts for your Lynx or Sedona Grill



Ask The Experts


  1. Night grilling again

    It fits, it works. Put some silicone grease where the wires meet the socket. Two of three were rusted on a wiring harness I’m replacing which is less than 2 years old.

    Verified Customer David - 14th Dec 2020


    For great service and great parts from BBQDEPOT.com For my links gas grill. I have used them several times with great high-quality replacement parts and great service

    Verified Customer Unknown - 20th Sep 2020
