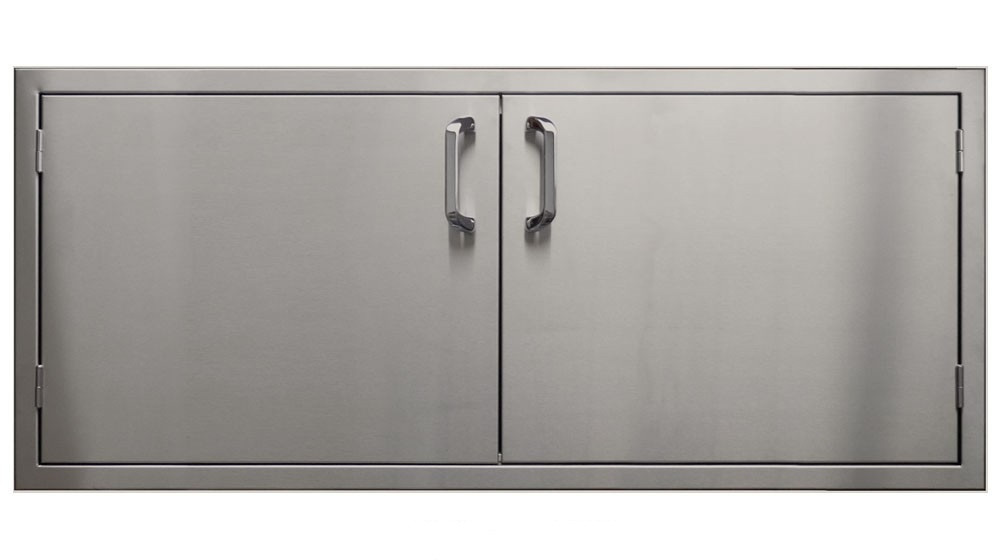

PCM-260-48X19 BBQ Depot 260 Series Built In Outdoor Kitchen 48 Inch x 19 Inch Double Access Doors Description
Cut-Out Dimensions : 19-in H X 46.5-in W
Cut out dimensions: refer to the cabinet opening where the component flanges will be attached. Cut out openings must be constructed to the cut out dimensions. Expressed measurements allow a ?” space on all sides between flanges and framework to allow the flanges to slide into the opening without binding. If openings are slightly too large, insert shims between framework and flanges. If openings are too small, the framework will have to be adjusted. Ideally, you would have the product on site prior to the start of construction.
Overall dimensions: include the frame. Width is measured horizontally from the outside edges of the exterior frame, height is measured vertically including the frame. To get approximate overall dimensions, add 1\" on all sides to the cut out width and height measurements. Use these numbers to plan the design and placement of appliances in your outdoor kitchen.
