19 1/8 x 6, Charmglow, DCS, Frontgate Stainless Burner - DCSU1 Replaces OEM 210617P
Sold Individually. Multiple Burners May Be Required.

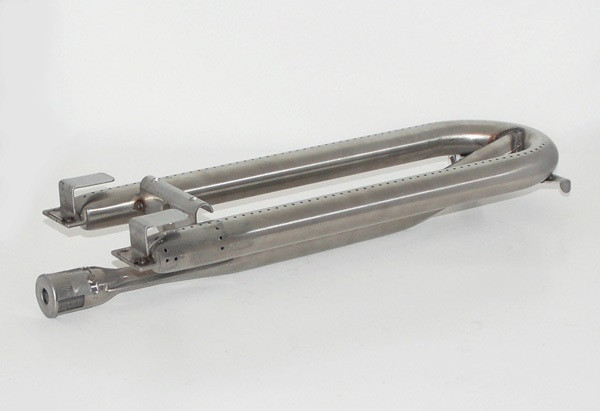

DCS-Compatible Stainless Steel U Burner (Aftermarket) – Part DCSU1
This aftermarket DCS-compatible U burner is designed for grills using a flat-style burner without a bottom heat shield.
Constructed from stainless steel, this burner is a budget-friendly alternative to OEM burners for many DCS, Charmglow, Frontgate, and related grill models.
Important Fit Note: This burner does NOT include a heat shield underneath. If your original burner has an attached lower shield, this is not the correct replacement.
Burner Design: Features a rear center-fed tube with a downward bend. Burner ports are located on the sides only — there are NO burner holes along the back curve of the “U”.
Quick Fit Check
- Part Number: DCSU1
- Burner Style: U Burner
- Material: Stainless Steel
- Dimensions: 19 1/8" x 6"
- Configuration: Flat-style burner with no bottom heat shield
- Feed Tube: Rear center-fed pipe with downward bend
How Many Burners Does My Grill Use?
Burner quantity varies by grill size and series. These are common configurations for many compatible models:
- 27" Grills: Typically use 2 burners
- 30" Grills: Typically use 2 burners
- 36" Grills: Typically use 3 burners
- 48" Grills: Typically use 4 burners
BBQ Depot Tip: Many grills use multiple burners of the same size. Inspect your grill before ordering so all burners match for even heating and performance.
Important Compatibility Notes
- This aftermarket burner may differ slightly from OEM in length, construction, and burner port placement.
- Some applications may require a longer orifice if additional reach is needed.
- Compatible longer orifice: Part 31800
- We strongly recommend removing and comparing your original burner before ordering.
When Should You Replace Your Burner?
- Large holes or splitting metal causing uneven “blowtorch” flames
- Weak or thinning burner material
- Uneven heating or yellow flames that remain after cleaning
- Rust, corrosion, or burner deterioration
Compatible Grill Models
Fit Tip: If your exact model is not listed below, compare your original burner dimensions and burner configuration to the specs listed above.
DCS:
27DBQR, 27DBR, 27DSBQ, 27DSBQR, 27FSBQ, 27FSBQR, BGA27-BQ, BGA27-BQR, DGC30-BQ, 30DBQR, BGA48-BQAR, BGA48-BQR, BGB30-BQR, BGB30-BQA, BGB36-BQAR, BGB36-BQR, EDV27-BQ, EDV27-BQN, EDV27-BQR, EDV27-BQRN, EDV36-BQA, EDV36-BQAN, EDV36-BQAR, EDV36-BQARN, BH1-30, 71451, BH1-36-RL, 71449, BH1-36-NL, 71448
Charmglow: 810-8905-S, 810-8907-S
Frontgate: FG27R
Island Grill Company: Select models (verify dimensions)
OEM & Alternate Burner Options
Prefer an OEM burner instead? Use Part 210617P .
If this item is unavailable, use Part 12171 as an alternative.
Alternate Part Numbers: 12171, 32217, 12285, 213995
Fit Check Recommended: Before ordering, compare the overall dimensions, burner shape, center-feed tube design, and whether your original burner uses a bottom heat shield.
This item is not an original manufactured part.
Need help confirming fitment? Contact us with your grill model number and photos of your original burner.
